Model Jet Related Bit's

These are not standard O rings but a Harder shore rating for this type of use.

Each base is 15x12mm
& 28x15mm footprint as shown in pic.

Available in Black or White.

Colour

BlackWhite

Each base is approx 10mmSq
& 26x10mm footprint as shown in pic..

Large size Felt clunk 20mm Diameter, ideal for fueling stations or large fuel tanks suitable for kero and Petrol.

Barb size to suit std 6mm Tygon etc.

These are great as a std fuel clunk or to build your own centre pickup UAT as the sintered brass stops bubbles.

Barb suits 6mm OD Tygon.

Hard Ceramic Porex clunk, much alternatice to the felt clunks for fuel tanks, suitable for kero and Petrol.

3.5mm Barb size to suit std Tygon etc.

Barb T Pieces.

Two sizes of T Pieces to suit Tygon or festo polyurethane tube.

3mm size suits 4mm OD festo tube,
4mm size suits 6mm OD Tygon.

Size

3mm4mm

Bulkhead fitting with 4mm festo push fits on each end..

Fits into a 12mm hole.

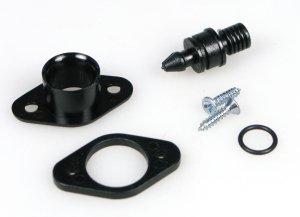

Refuelling probe which is ideal for fitting on the end of 6mm OD tygon tube,
Male probe is 4mm so can be used with festo fittings or just pushed into tygon tube.
May also come in black.

6mm female to 4mm male

Ideal filter for use with 3.2mm ID, (6mm OD) tygon tube due to the big barb ends.

We use it alot on the fuel tank fill line, on jet aircraft, as a final protection from keeping dirt out of the tanks.

Blue Anodised Finish.

Same style as supplied with
Jetcat turbines, except has a
sintered bronze filter element and a Nice Blue Anodised finish.

The Bronze filter is not effected by the fungus growth you get in kero which can put a film across mesh filters.

Designed to be used with 4mm festo tube.

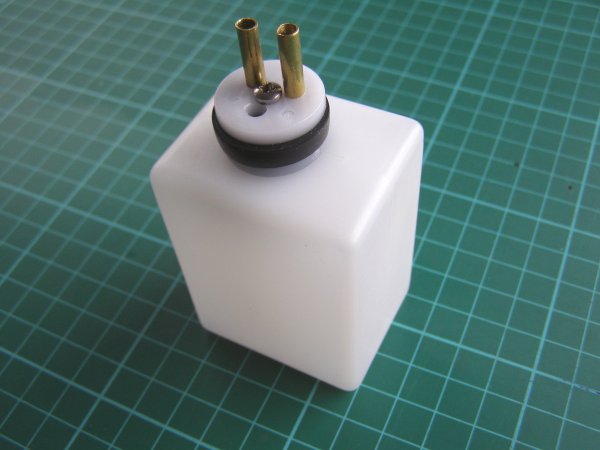

Vent/Overflow Tank.

A pre made up Vent/Overflow tank designed to be installed in the model to catch excess fluel when filling and preventing it dripping out the vent pipe when you carry the model.

Can also be used as an onboard taxi tank, very light only 30g fitted with kero bung and 4mm brass tubes to suit tygon.

Tank size 38x48x64h approx 3oz

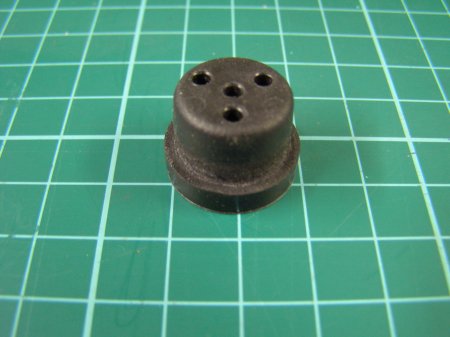

Holes are not punched fully through so can be used for two or three pipes.

Sold in a 300mm length which is enough to do about 5 pumps

Pump simply clamps into spring Clip and held in place with an O ring.

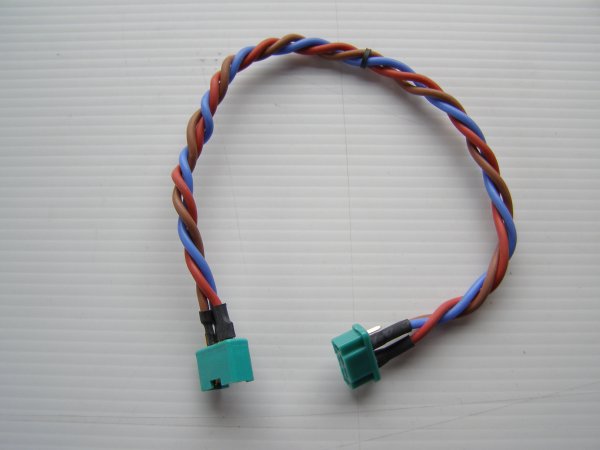

Jetcat leads that fit from ECU to Turbine fitted with MPX plug/skt.

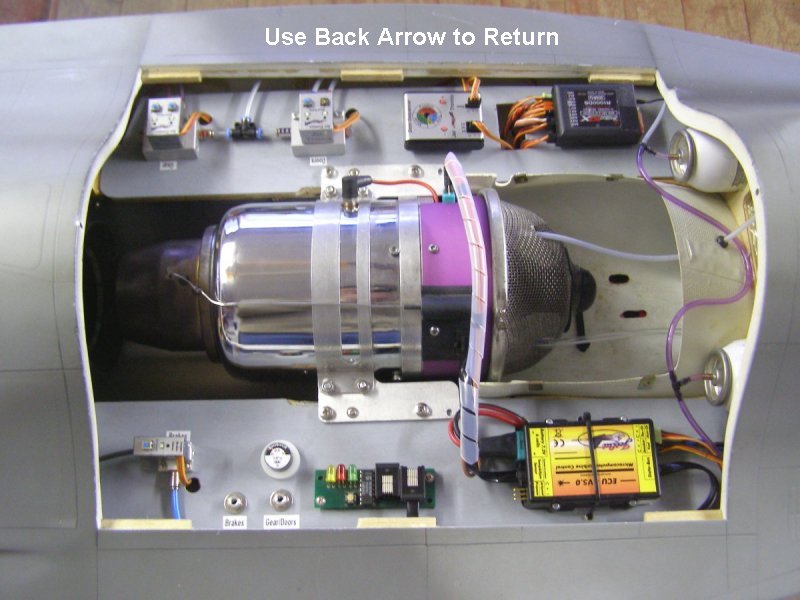

In some installation as on picture on left (click to make bigger) leads may need to be shorter or longer than supplied so custom lengths are available for neater installations.

The leads are made from a silicone wire that is a better quality and more flexible than type supplied by jetcat.
Any length can be supplied

Length

6"  €5.50 12"  €6.00 18"  €6.50 24"  €7.00 30"  €8.00 36"  €9.00

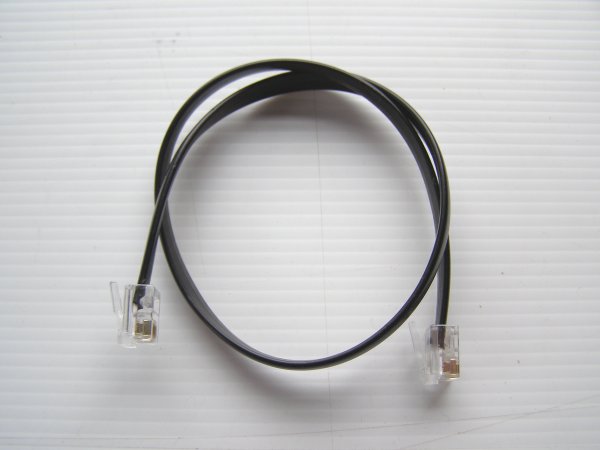

Flat Black data lead with RJ12 plugs

Same as power lead on the left, this cable runs from ECU to turbine and tends to be the same length as the power lead when installed.

This lead also fits between the ECU & I/O board and also the Hand Data Terminal.

Any length can be supplied

Length

6"  €3.50 12"  €5.00 18"  €6.50 24"  €8.00 30"  €9.50 36"  €11.00

If you want it to stick then you have to use the Genuine stuff.

There is a big difference in genuine Velcro Branded hook & loop than other cheap brands, when you use it you realise the difference.

Colour

BlackWhite

This is velcro hook & loop bonded back to back, for securing and tieing items together.

Only when you start using this stuff you realise how great it is. We use it for securing batteries, ECU's (as in picture) & cables. Use it for securing stuff in your car, van, loads of uses.

16mm wide sold by the meter.

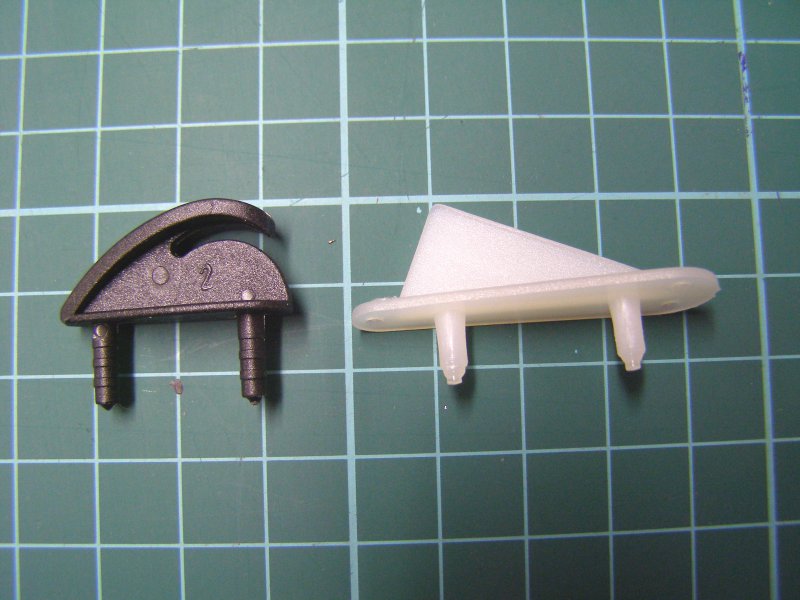

Two types available, keeps the wing tips from getting scuffed on the tarmac.
The thin white one is approx 40mm long, the wide black one is approx 30mm long.

Pack of two

Size	Thin WhiteWide Black

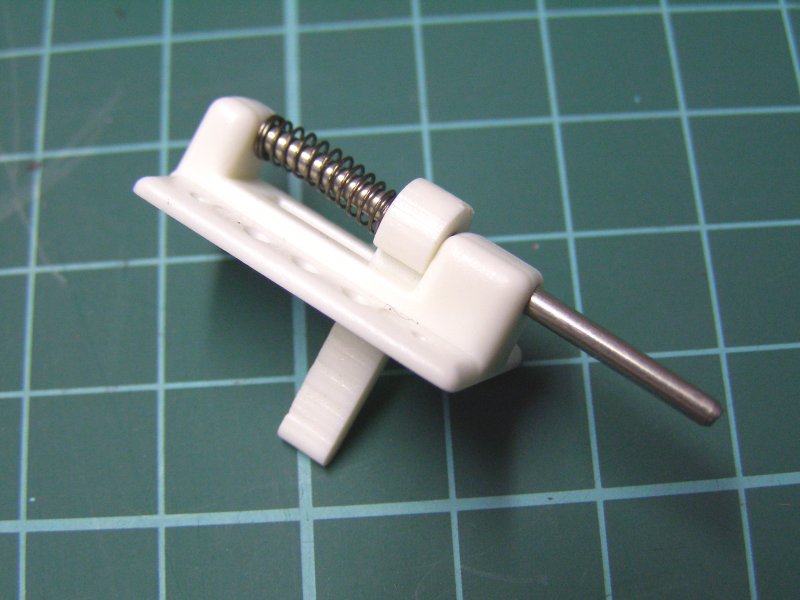

White plastic canopy catch than can either be glued or screwed in place.

30mm long 10mm high

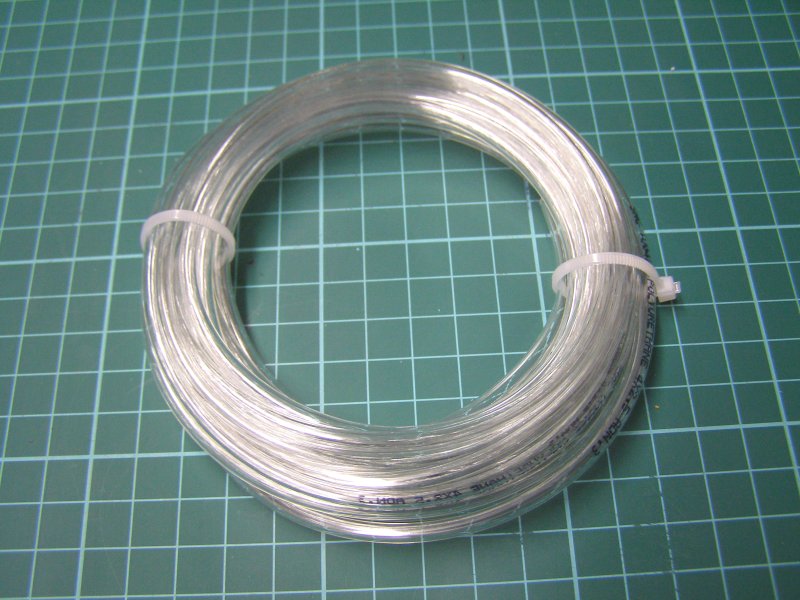

As used for push fit festo type fittings, turbine fuel lines etc.

Sold by the metre 10M max in one length

Size	4mm €1.50 6mm €1.95

Three sizes available (outside Dia)
90mm P60, Wren 54
98mm P70, M140, Cheetah
110mm P80/120/160

Size	90mm98mm110mm
Colour	NaturalBlack
